Planning for heat recovery from a biomass boiler plant



We provided the client with the process engineering design as well as the piping and facility layout for heat recovery from the existing plant. Here is an excerpt of our services:



  • Process engineering design of heat recovery
  • Routing of steam and condensate pipelines
  • Detailed isometric drawings for assembly including material take-off
  • Pipe stress calculations according to EN 13480
  • Structural analysis and design for steel and concrete structures
  • Sectional and overview plans “As Built” documentation

Steam diagram

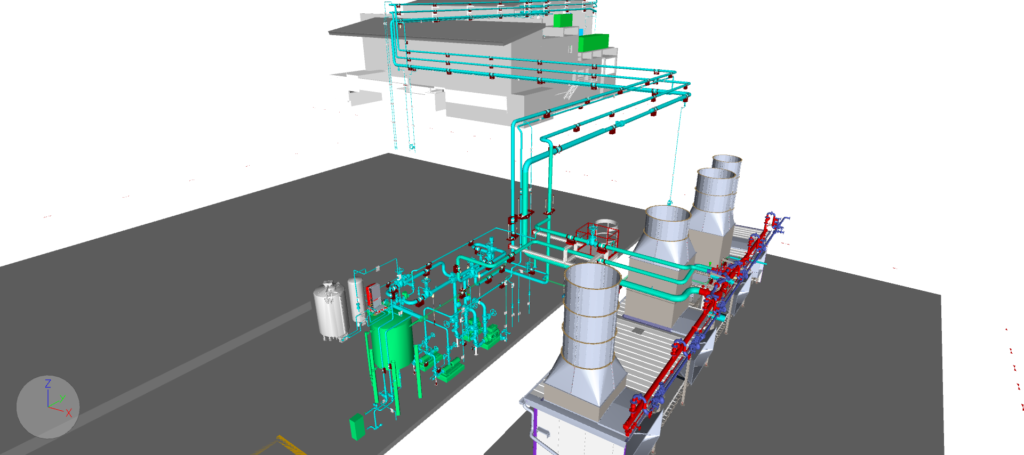

3D planning of pipeline routing and planned components for heat recovery.
