Heat Extraction from a Biomass Boiler Plant
Process design as well as piping and plant engineering for heat extraction from an existing biomass boiler plant.
ICB / REFERENCE PROJECT
Project scope
Scope and technical outcomes.
Engineering of the heat extraction system from an existing biomass boiler plant, from process design through detailed routing and as-built documentation.
Scope delivered
01Process design of the heat extraction system
02Routing of steam and condensate lines
03Detailed isometrics for installation including material quantities
04Pipe stress calculations according to EN 13480
05Structural analysis and design for steel and concrete structures
06Section and general arrangement drawings
07As-built documentation
Technical outcomes
01Process / steam scheme

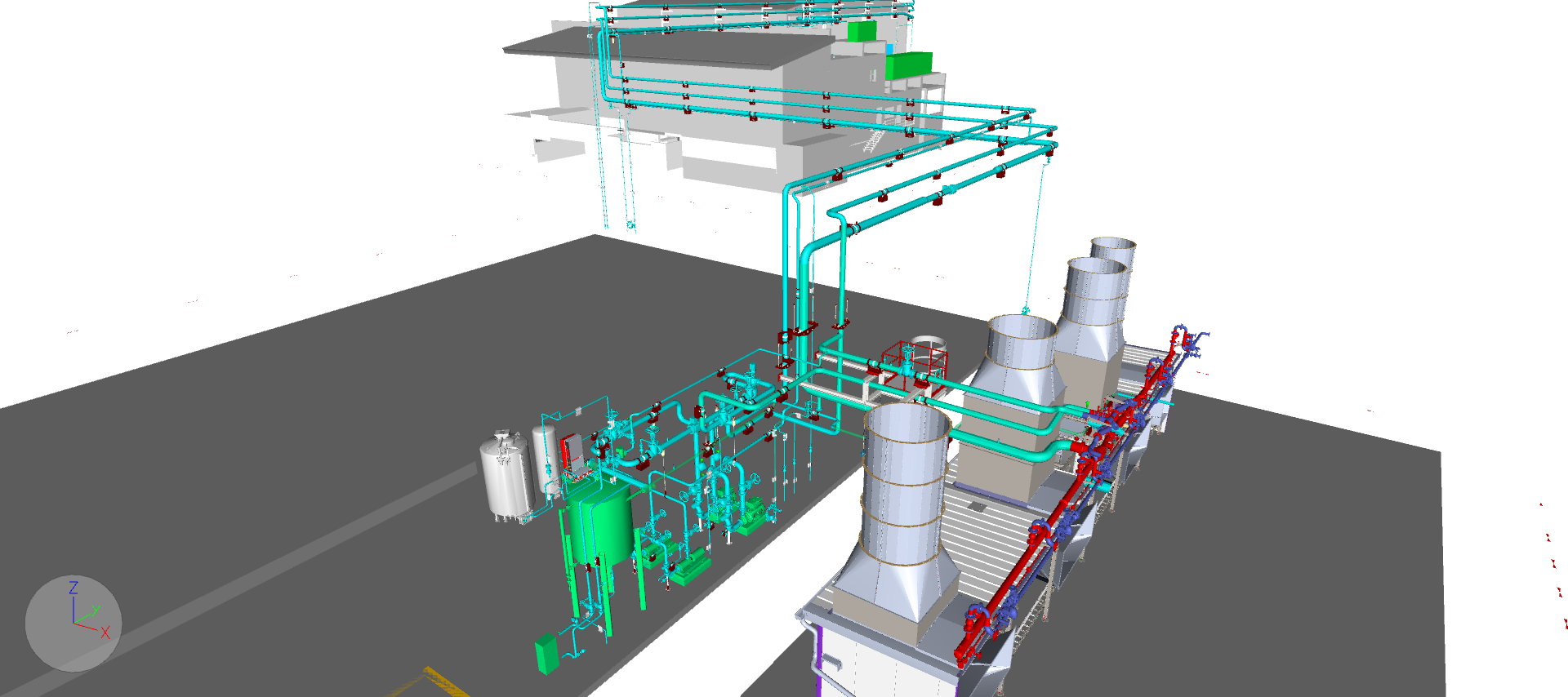

023D routing and plant model
03Detailed isometrics and material quantities
04Pipe stress calculations
05Structural calculations
06Sections and overview drawings
07As-built documentation
Project Context
Engineering within the existing system.
ICB delivered the process design as well as the piping and plant engineering for heat extraction from an existing biomass boiler plant.nnThe engineering combined process requirements, routing, pipe stress and structural design in one coordinated planning basis.
