Heat Recovery from a Biomass Boiler Plant
Process design as well as piping and plant engineering for heat recovery from an existing plant.
ICB / REFERENCE PROJECT
Project scope
Scope and technical outcomes.
Engineering of heat recovery from an existing biomass boiler plant – from process engineering through 3D routing and as-built documentation.
Scope delivered
01Process design of the heat recovery system
02Routing of steam and condensate lines
03Detailed isometrics for installation incl. quantity take-off
04Pipe stress calculations according to EN 13480
05Structural analysis and design for steel and concrete structures
06Section and general arrangement drawings
07As-built documentation
Technical outcomes

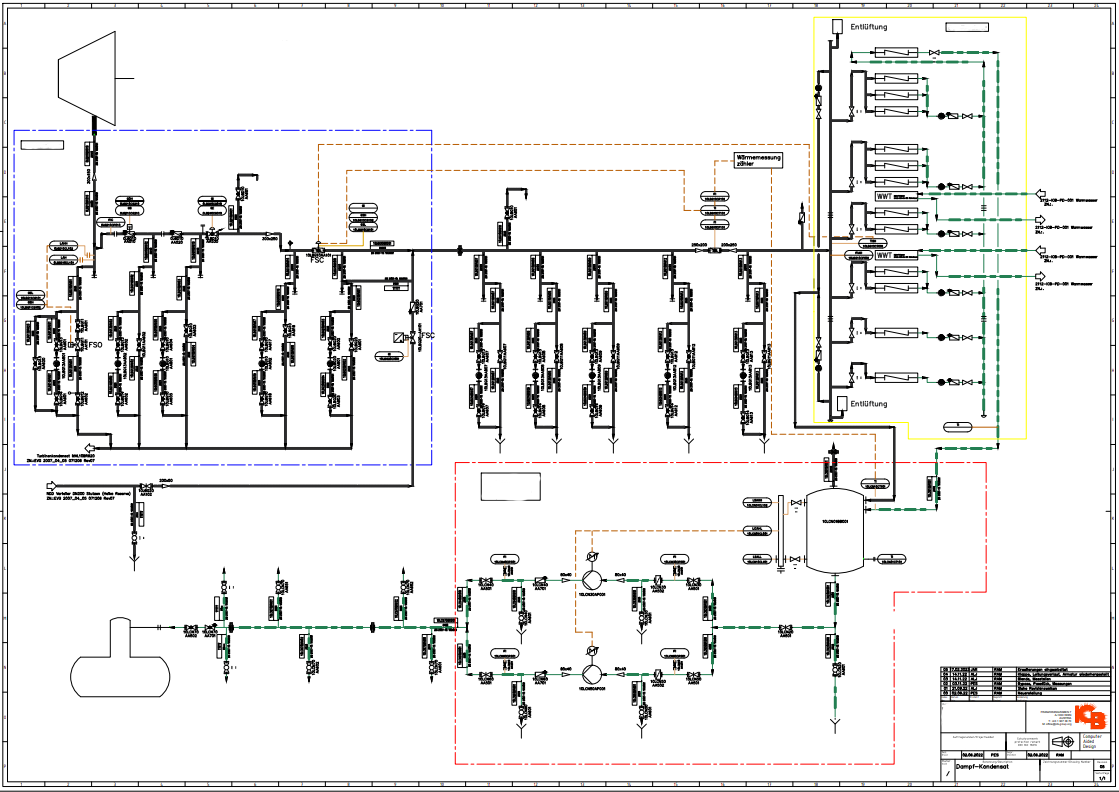

01Steam diagram
023D design of routing and disciplines
03Detailed isometrics and quantity take-off
04Pipe stress calculations
05Structural design
06Section and general arrangement drawings
07As-built documentation
Project Context
Engineering within the existing system.
ICB provided the process design as well as the piping and plant engineering for heat recovery from the existing plant.nnThe design combines process engineering, routing, pipe stress and structural engineering in one coordinated technical basis.
Technical visuals
3D Design – Heat Recovery
Process Engineering
