Detailed engineering for a pump station in an existing plant environment.
ICB / REFERENCE PROJECT
Project scope
Scope and technical outcomes.
Engineering and documentation for a pump station with direct integration into the existing plant environment.
Scope delivered
013D laser scanning for planning reliability in the existing plant
023D piping design
03Pipe stress analysis according to EN 13480
04Support positioning and calculation of support parameters
05Calculation of maximum forces and moments at connection points
06Piping isometrics including bill of materials
07As-built and final documentation
Technical outcomes
01Coordinated 3D model
02Pipe stress calculation
03Piping isometrics and bill of materials
04Fabrication, assembly and installation drawings
052D documentation
06As-built documentation
Project Context
Engineering within the existing system.

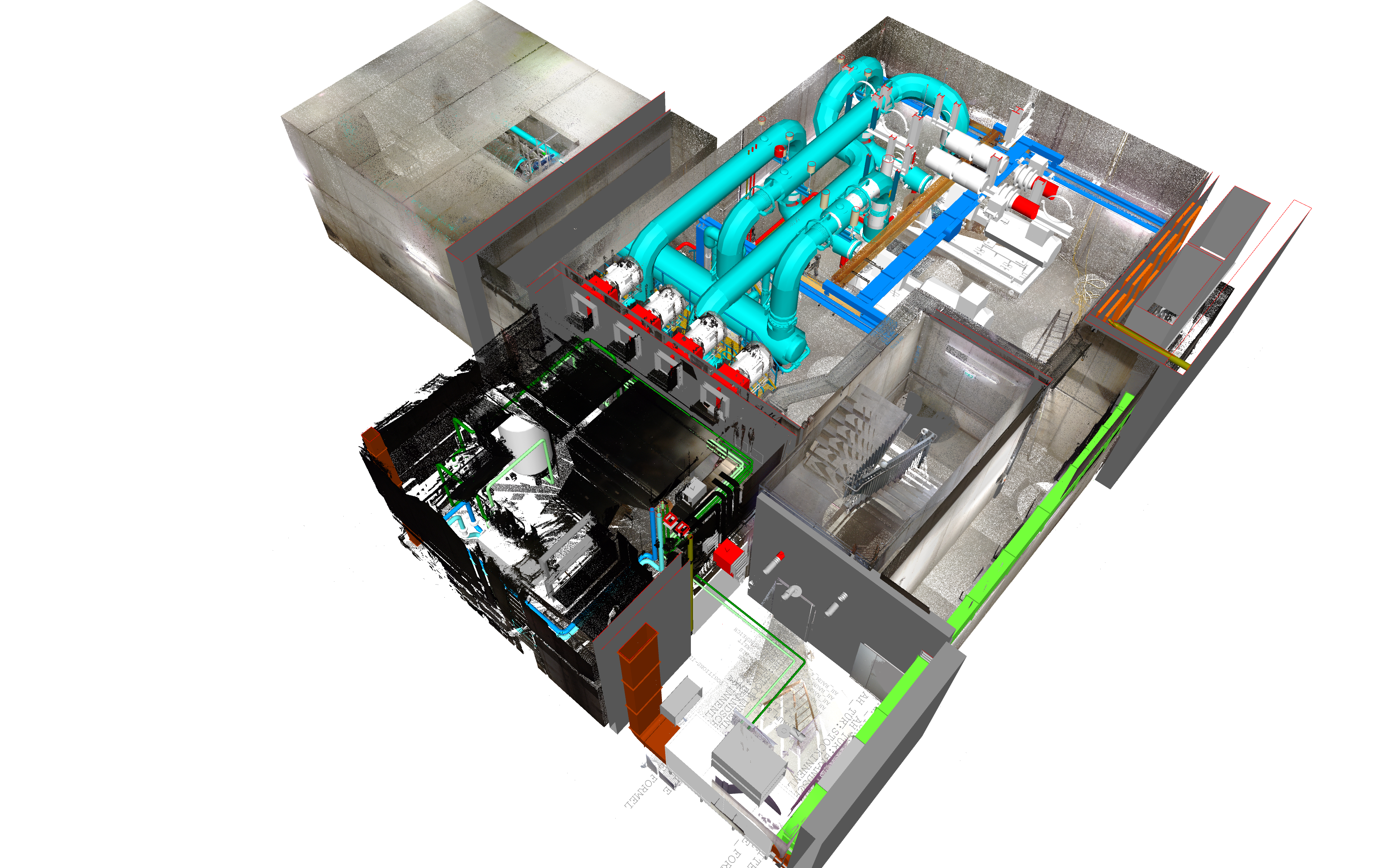

The project combines digital capture of the existing facility with coordinated 3D piping engineering. The planning basis accounts for the existing crane system and the real geometry of the plant.nnThe model is used to derive fabrication, assembly and installation drawings as well as the final documentation.
